Univac 3 system

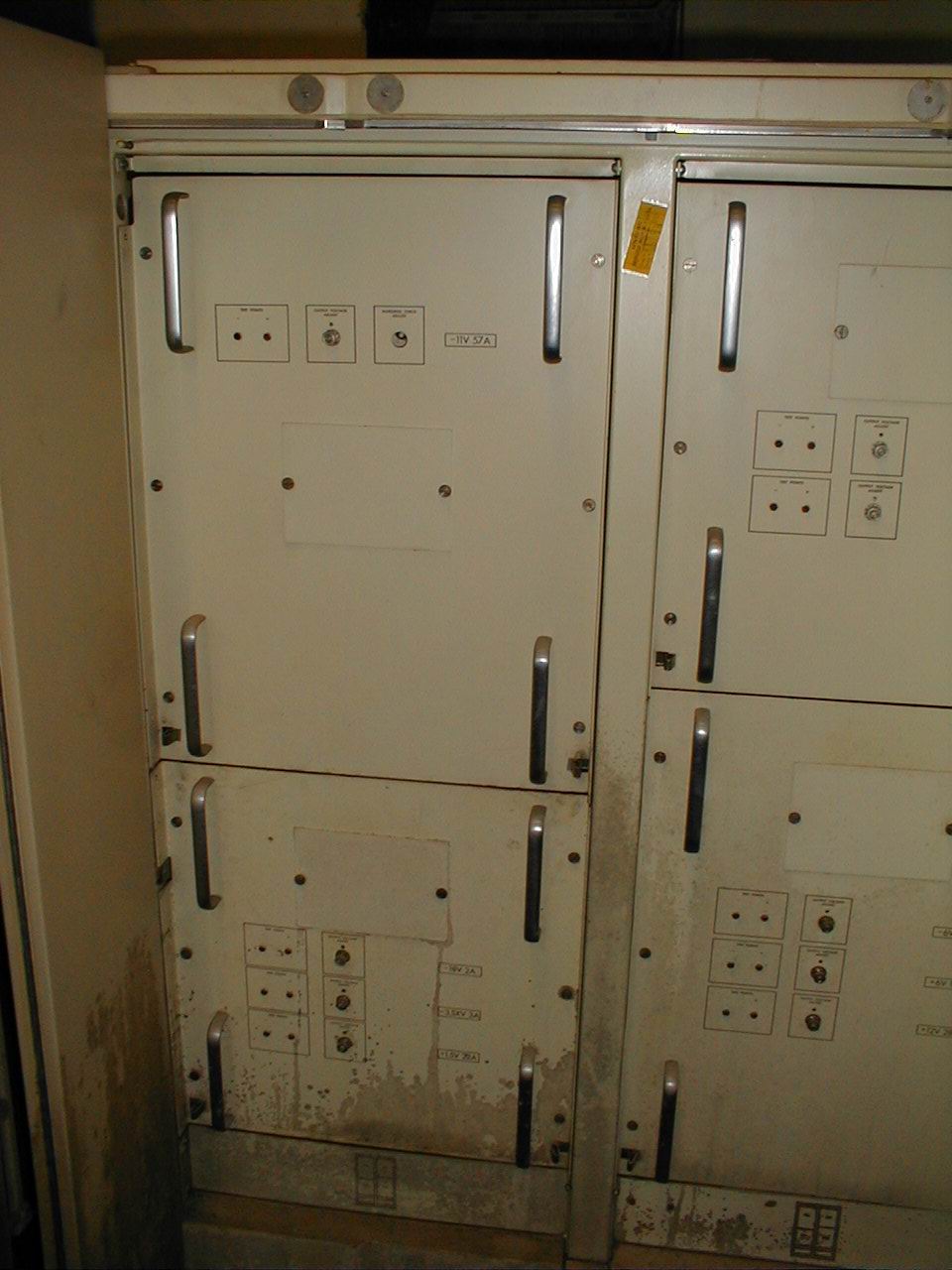

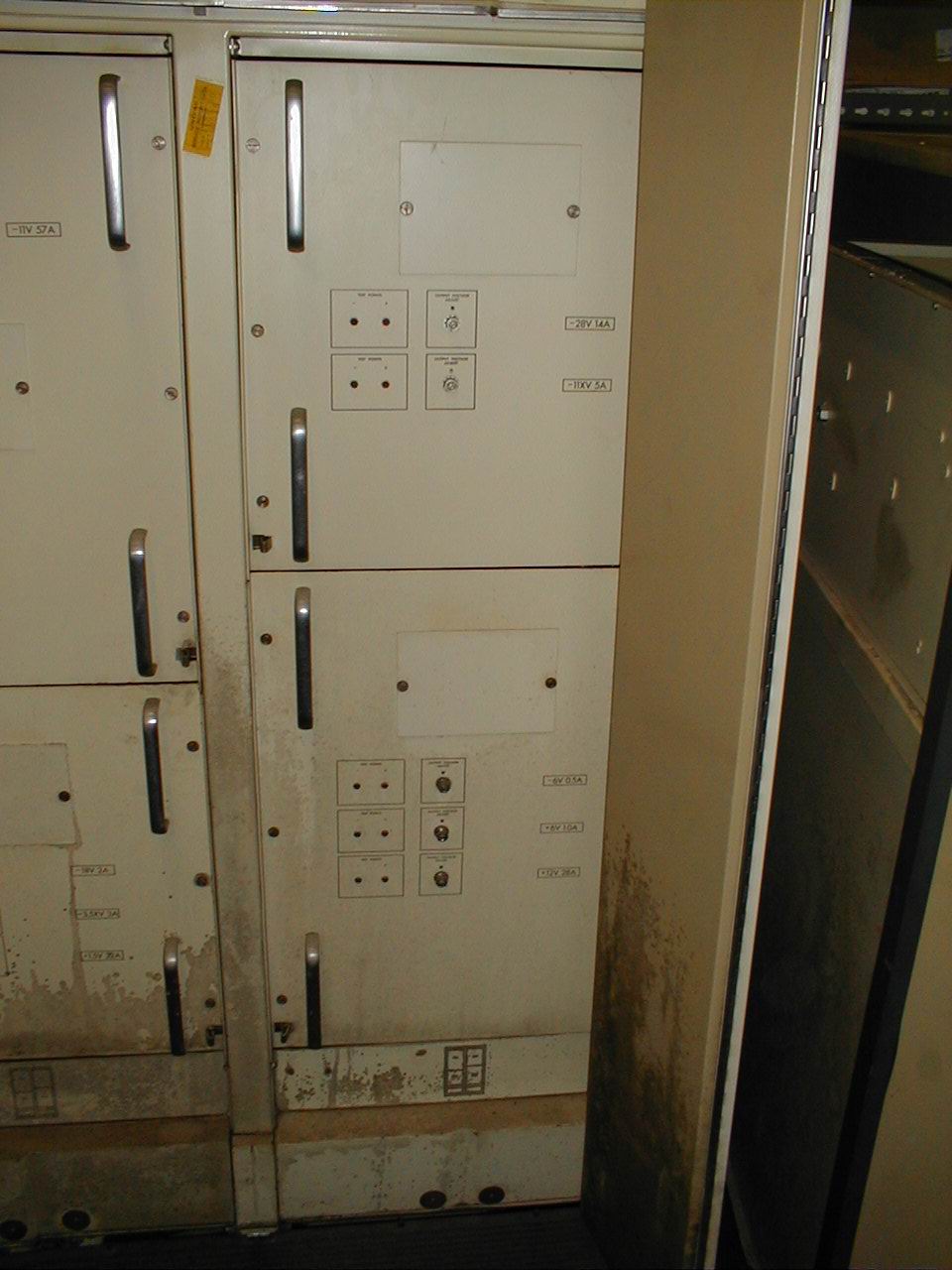

power supply bay, upper section
-11v 57a
-28 14a
-11Xv 5A
-6V 0.5A
+5V 10a
--- out of view ---
+6
+6
+12
-16v 2a
-35V 3a
+15v 25A

overall view of power supply bay

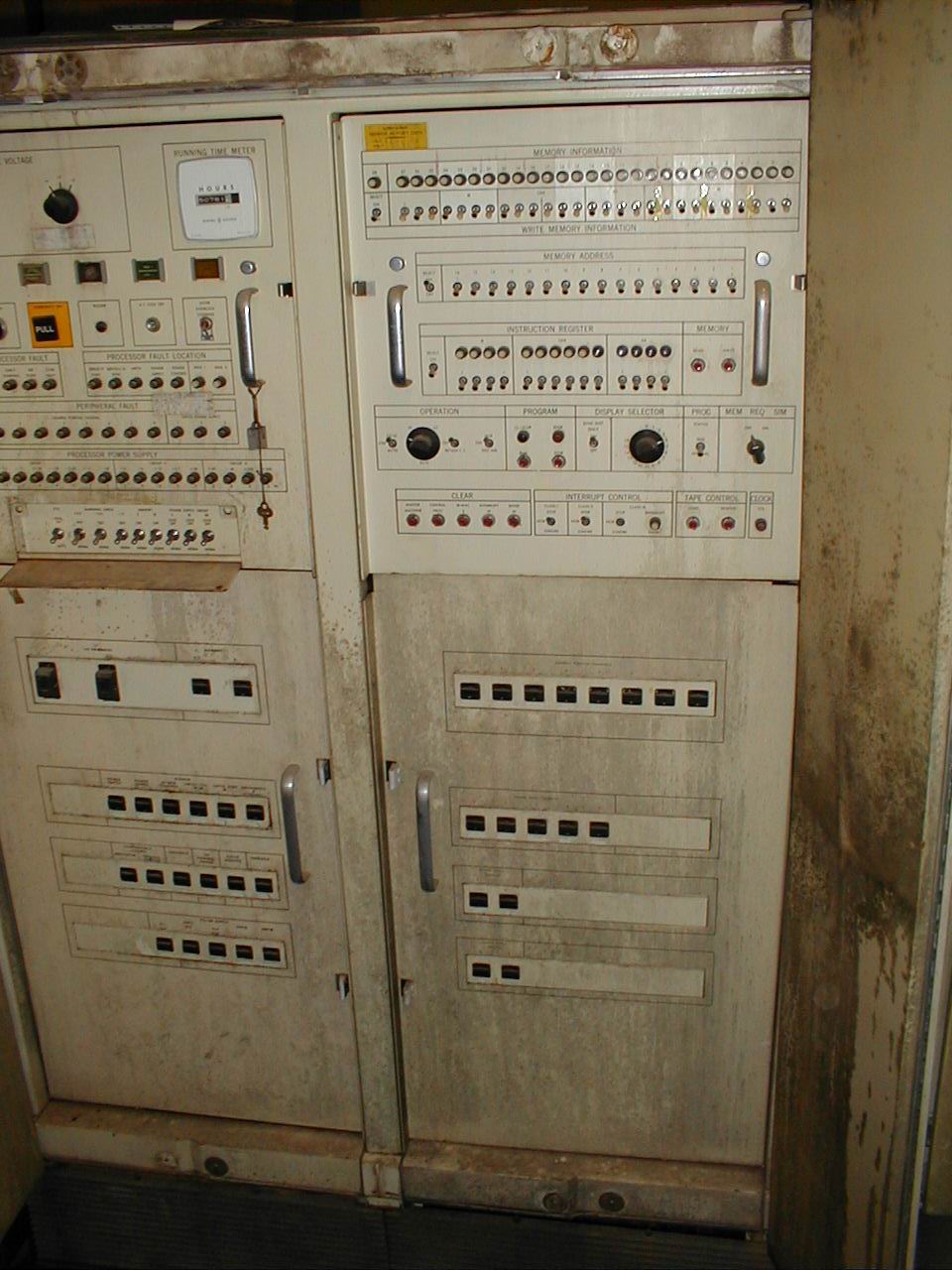

System control bay

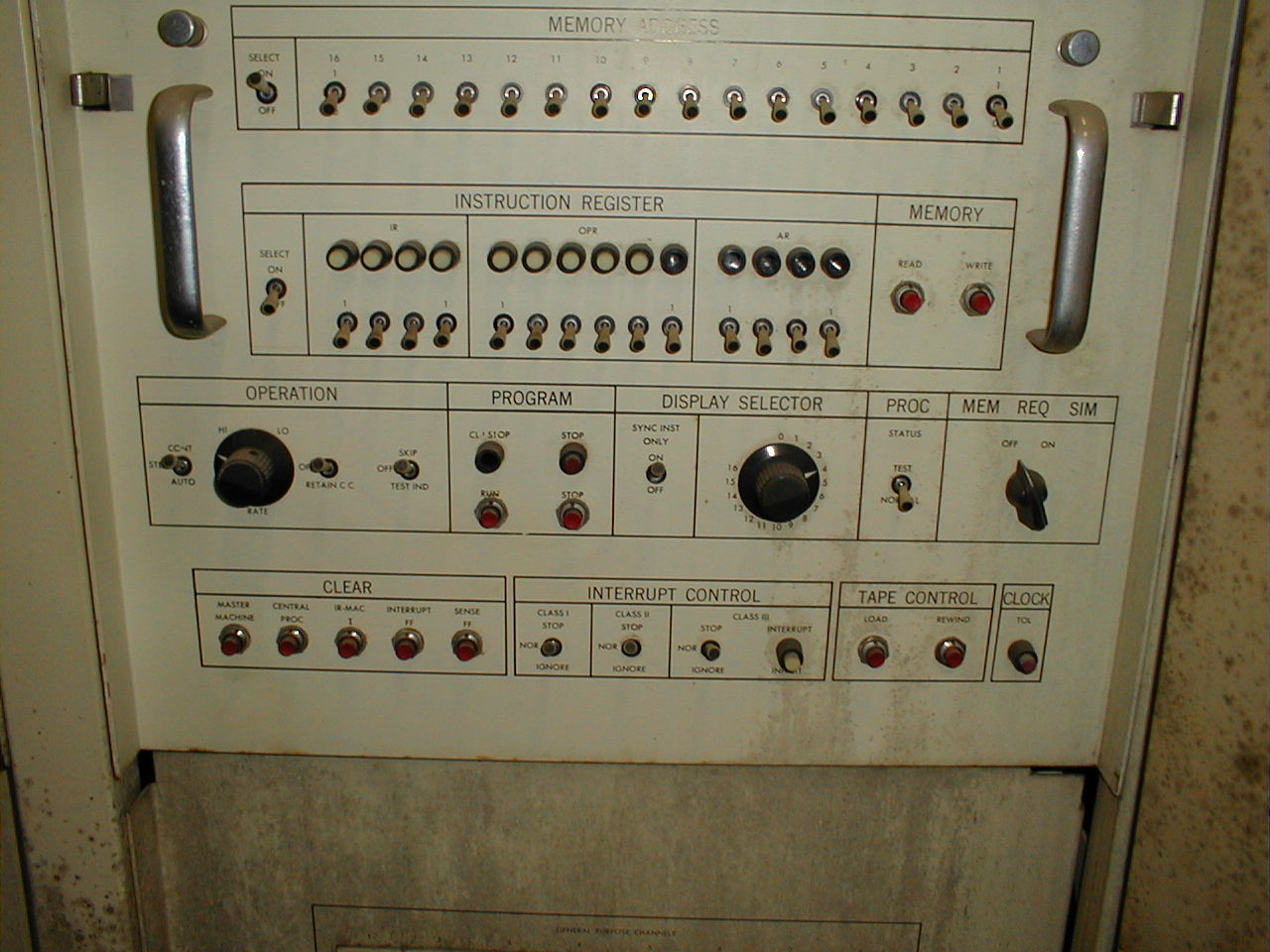

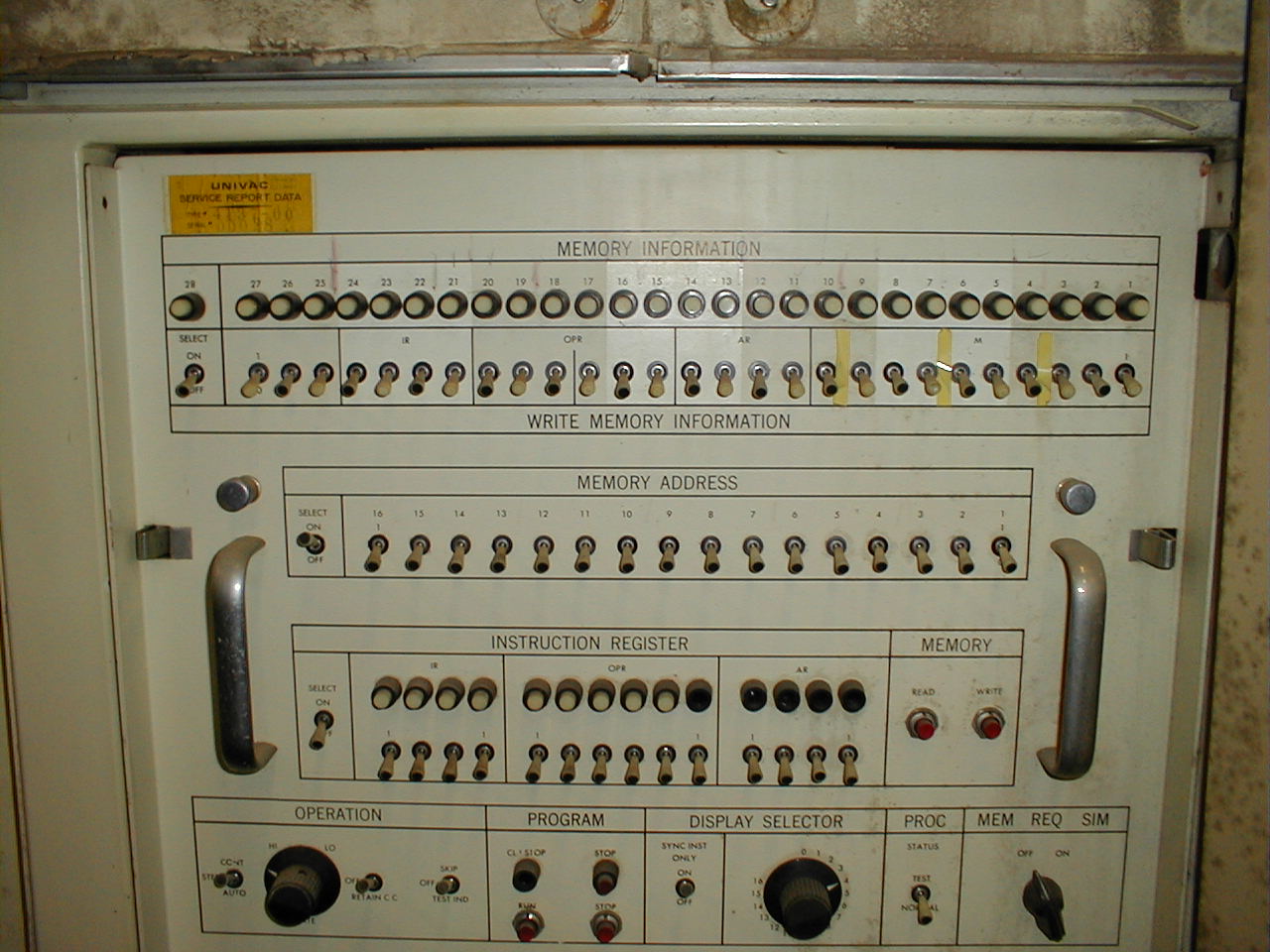

Processor panel
28bit, 14 bit instruction
register shown on right
side.

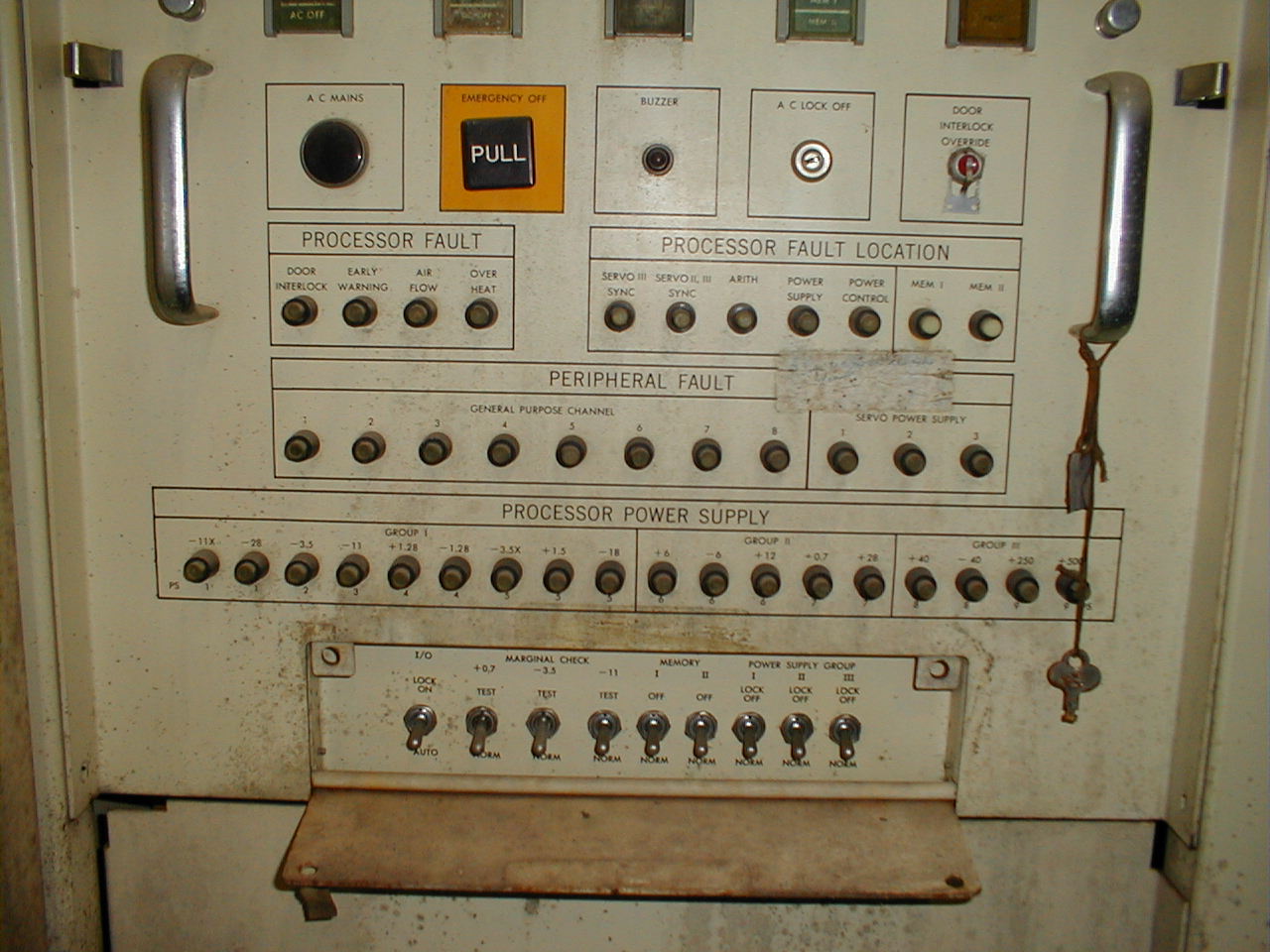

power control panel with breakers,
AC control lock.
power supply alarms and
status panel.  heavy breakers
are in the 100 amp range, center

system panel, close up

lower system panel close up

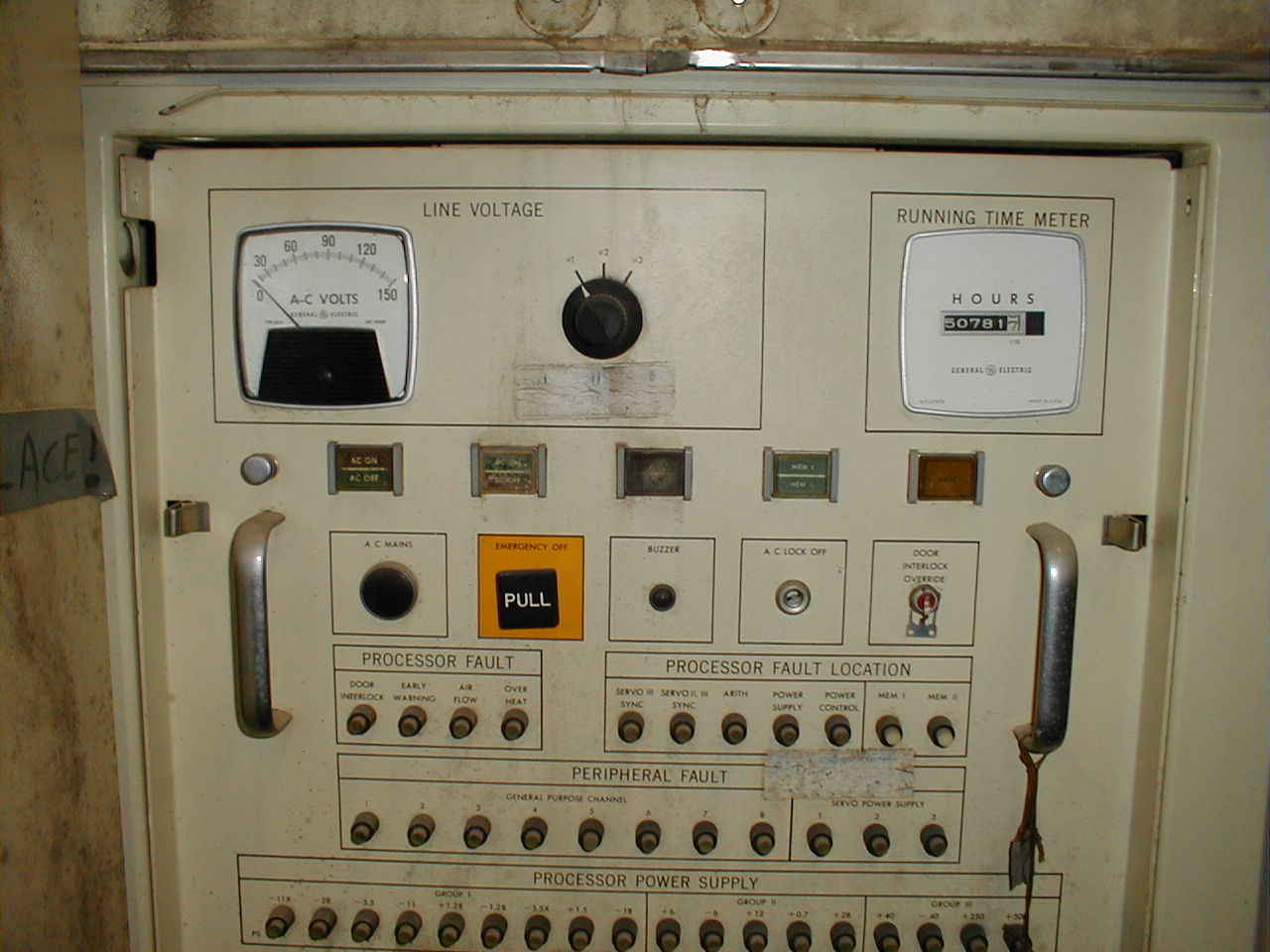

Power control, status panels,
system time meter 50,781.7 hrs
Mfg Date was 11/1962
Shutdown date ~ 4/1978

lower part of power contol and status
 panel
